The APEC G800-TR Series is a 5-Axis Gantry Vertical Machining Center designed for high-precision aerospace engine components and other complex workpieces. Its high-rigidity U-frame structure ensures excellent stability, while the integrated milling and turning capability enables complete machining in a single setup, improving accuracy and productivity.
With 800 × 830 × 560 mm travel, 48 m/min rapid traverse, and a 20,000 rpm spindle, the G800-TR Series delivers high-speed, high-precision performance for demanding aerospace, energy, and precision manufacturing applications.

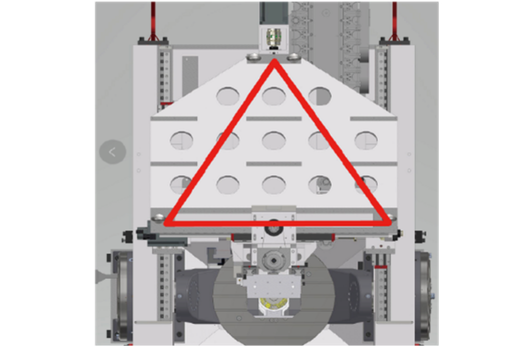

The driven centers of the three-axis are all on these gravity centers, which greatly improves the dynamic stability of the structure.

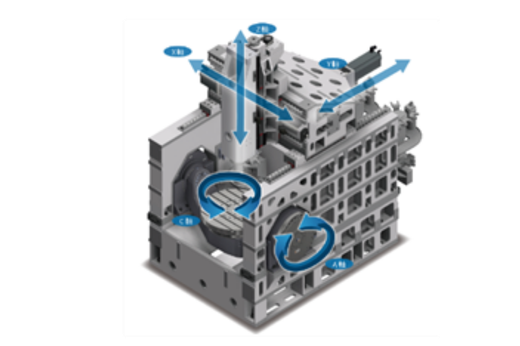

X/Y/Z axis moving and table rotation are working individually to make sure machining is free from 3 axis inertia influences. The perfect servo-driven design gives excellent machining stability.

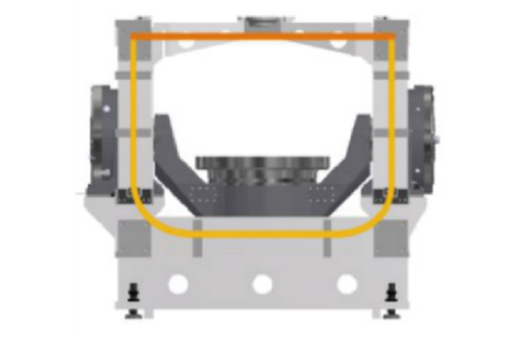

The saddle and column form a closed structure. High rigidity machines could reduce vibration effectively, increase processing stability and improve machining accuracy

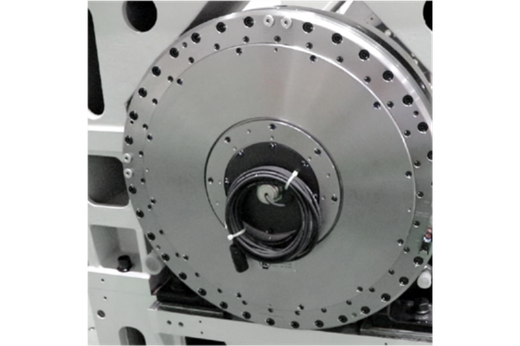

The A / C axis are driven by direct-drive motors. The power can be completely transmitted and provides high-precision machining capabilities
