NL 2000 Series

Feature

The Smart Machine Tools NL 2000 Series Horizontal Lathe is engineered for high-performance turning with exceptional rigidity, precision, and productivity. Featuring a robust machine structure and powerful cutting capability, it provides reliable performance for a wide range of machining applications.

Key Features

45° slanted torque tube bed with wide slideways for high-rigidity machining.
One-piece wide box guideways for heavy-duty cutting performance.
High-torque AC servo motor for fast indexing and excellent repeatability.
Rapid traverse rate up to 30 m/min (Z-axis) for increased productivity.
High-power spindle for powerful and efficient cutting.
User-friendly operation panel for easy machine operation.
Supports various peripheral equipment and optional accessories.

Product Introduction

One-Piece Casting Bed

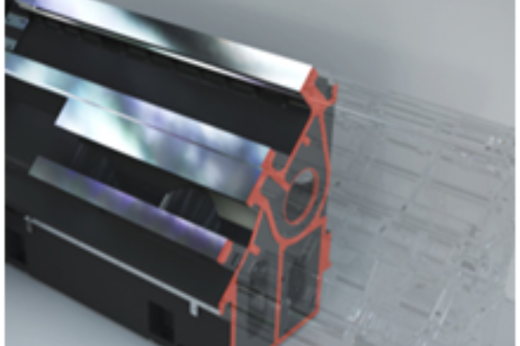

One-piece 45-degree slant bed made out of GC300 high tensile strength cast iron, which has superb vibration absorption characteristics, provides rigid foundation for all machine components. Such design endures long-term machining accuracy and consistency. In addition, 45-degree slant bed design provides operators with convenient access to the workpiece and superb chip discharge.

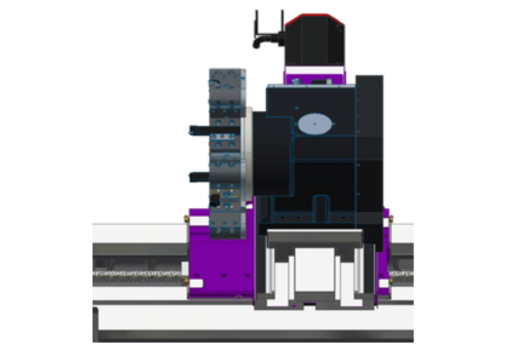

Wide box guideways and Carriage

Hexahedral design and wide box guideways, machined from one piece casting, promote heavy duty machining. Induction hardened and precision ground ways ensure accurate machining for extended period of time. Wide carriage promotes less vibration and allows high precision machining.

- Z-Axis High Performance Motor
Z-axis is equipped with high performance feed motor for better travel ability.
Z-axis rapid traverse rate: 30 m/min [1,181 ipm]

- Pre-tensioned Ballscrews
All axes ballscrews are pre-tensioned, heat treated and fixed by double anchors on both ends, providing ultimate rigidity and minimal thermal growth.

Main Spindle

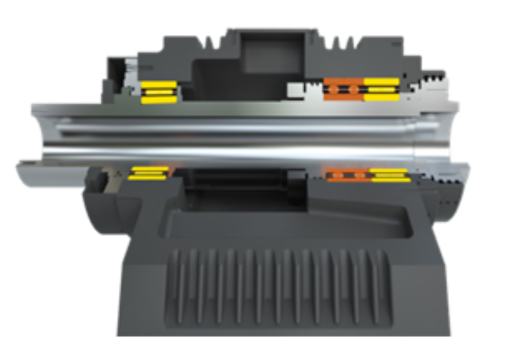

Double row cylindrical roller bearings in the front and back, coupled with angular thrust bearing, ensure high rigidity for heavy cutting and excellent surface finishes.

12-Station Turret

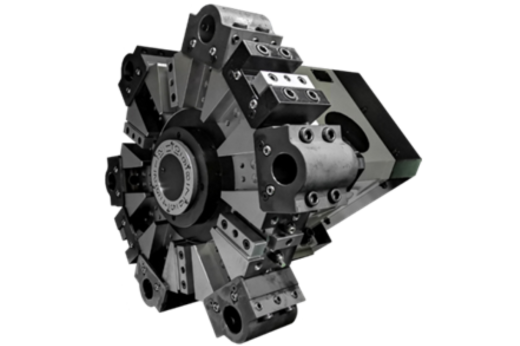

Large diameter 3-piece Curvic coupling for excellence rigidity and extended tool life.
High torque AC servo motor driven ensure fast indexing time, excellence position and repeatability.

Programmable Tailstock Body & Quill

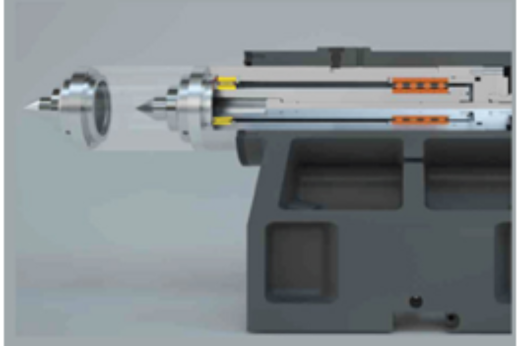

Wide-spaced guideways and heavy-duty tailstock body design ensure machining rigidity, and built in spindle quill design ensures higher rigidity.
NL 1500
■ Quill Type : MT#4 (Live)
■ Quill Dia : Ø80 mm
■ Quill Travel : 80 mm
