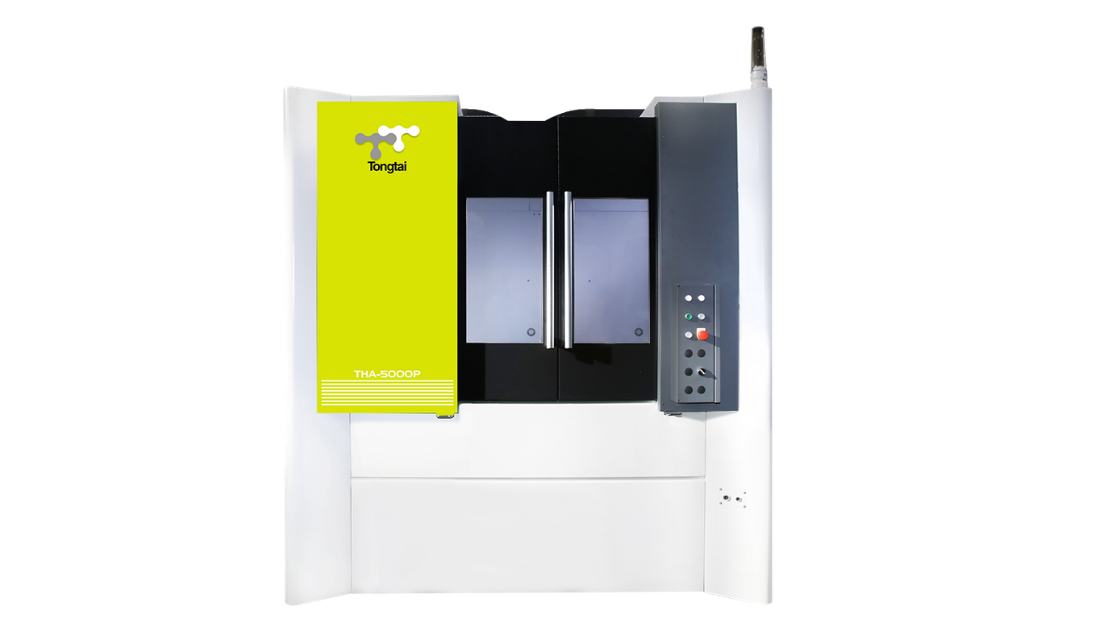

The Tongtai THA-5000P is a Horizontal Machining Center engineered for high-efficiency multi-face machining of automotive components, cast aluminum, and cast iron housings. Its high-rigidity structure and high-speed cutting capability deliver stable, precise performance for demanding manufacturing applications.
Featuring a high-precision B-axis indexing system and a double-wall column structure, the THA-5000P ensures superior positioning accuracy and thermal stability during extended machining operations. An optional Automatic Pallet Changer (APC) increases productivity by minimizing downtime, making it an ideal solution for high-volume production of small- to medium-sized complex components.

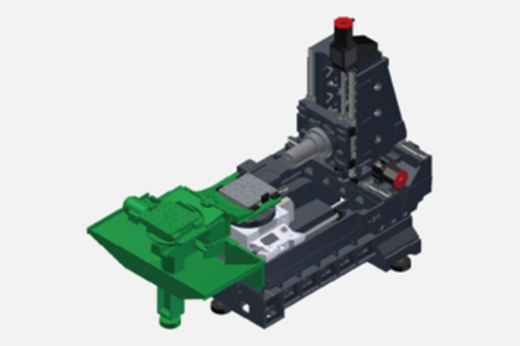

The three-point supported machine bed provides a high-rigidity foundation while enabling faster and easier leveling.
Combined with the X-axis staggered (high–low) guideway design, this configuration enhances structural rigidity while reducing overall weight and footprint, improving machining stability and production line layout efficiency.

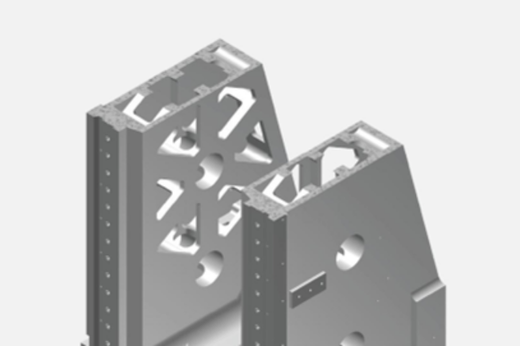

The machine adopts a symmetrical double-wall column structure, which reduces asymmetric thermal deformation and maintains geometric accuracy during machining.
Integrated with a honeycomb structural design, it achieves a 25% reduction in weight and a 20% increase in rigidity compared with conventional designs, ensuring excellent machine stability and structural strength.

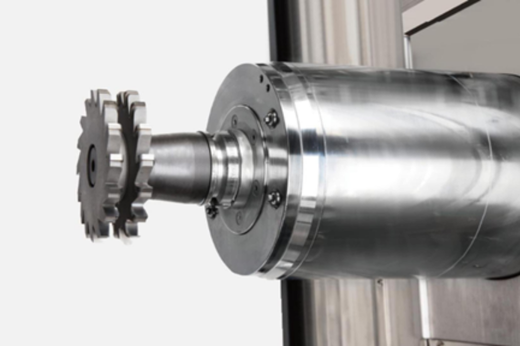

The THA Series is specifically optimized for cast iron and aluminum alloy machining, featuring a 15,000 rpm high-speed spindle that delivers up to 249 Nm of torque for excellent cutting responsiveness.
An optional No. 50 spindle is available, providing stable torque of up to 420 Nm to easily handle heavy-duty cutting of castings and steel materials, enabling high-efficiency machining across a wide range of materials.

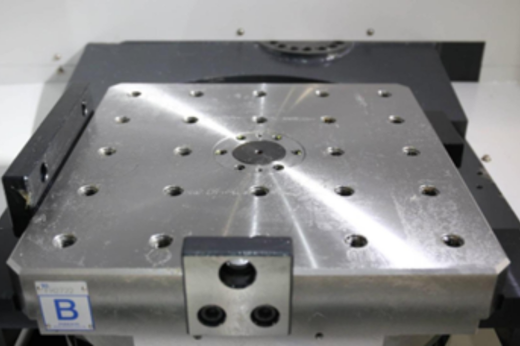

The improved hydraulically driven APC mechanism enhances structural rigidity during motion and incorporates optimized PLC control logic, effectively reducing pallet exchange time.
| SPECIFICATION | |
| ITEM | VALUE |
| X-Axis Travel | 730 mm |
| Y-Axis Travel | 730 mm |
| Z-Axis Travel | 830 mm |
| X-Axis Rapid Traverse | 60 m/min |
| Y-Axis Rapid Traverse | 60 m/min |
| Z-Axis Rapid Traverse | 60 m/min |
| Spindle Taper | 7/24 Taper No.40 |
| Spindle Speed | 15,000 rpm |
| Spindle Motor | 37/26/15 kW |
| Table Length | 500 mm |
| Table Width | 500 mm |
| Max. Table Load | 500 (opt. 700) kg |
| Tool Capacity | 40 (opt. 60/90/120/240) pcs |
| Max. Tool Weight | 10 (opt. 12) kg |
| Machine Width | 2,290 mm |
| Machine Depth | 5,000 (opt. 5,840) mm |
| Machine Height | 2,985 mm |
| Machine Weight | 11,700 (opt. 12,400) kg |
