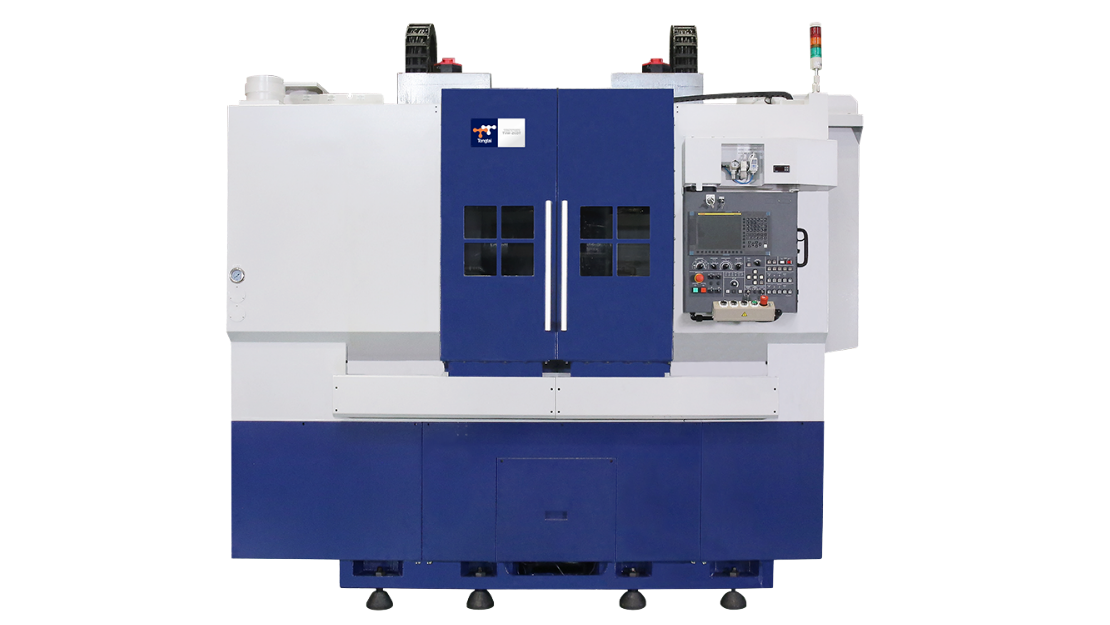

The TVW-26DT Vertical Turning Lathe is designed for high-precision wheel rim machining and high-volume production.
Featuring hardened box ways with precision hand scraping, it provides excellent rigidity and positioning accuracy during heavy cutting. Its dual-turret simultaneous machining and vertical configuration reduce cycle times while minimizing deformation of thin-walled workpieces.
An efficient steep-angle chip evacuation system enables rapid chip removal, reducing downtime and supporting reliable, automated production.
Large-scale hardened box ways with heat treatment and precision grinding provide exceptional rigidity for heavy-duty cutting. Turcite-B lining and precision hand scraping ensure smooth movement, stable lubrication, and consistent machining accuracy during long-term operation.
The dual-turret design enables simultaneous inner and outer diameter machining, completing multiple operations in a single setup to reduce cycle time. Combined with the vertical structure, it minimizes gravity-induced deformation of thin-walled wheel rims while maintaining high precision and surface quality.
The wide-slope, steep-angle bed design works with an integrated chip conveyor to quickly remove chips and prevent accumulation. This reduces cleaning downtime and supports stable, continuous production during heavy rough machining.
| Item | Value |
| Wheel Size | O.D.: 14-24 inch l Height: 6-12 inch |
| X-Axis Travel | 500 mm |
| Z-Axis Travel | 500 mm |
| X-Axis Rapid Traverse | 20 m/min |
| Z-Axis Rapid Traverse | 20 m/min |
| Spindle Nose | A2-11 |
| Spindle Speed | 2,000 rpm |
| Spindle Motor | 55/45 (opt. 75/60) kW |
| Chuck O.D. | Ø160 mm |
| Tool Capacity | 6+6 pcs |
| Machine Width | 4,214 mm |
| Machine Depth | 4,100 mm |
| Machine Height | 3,649 mm |
| Machine Weight | 19,800 kg |
