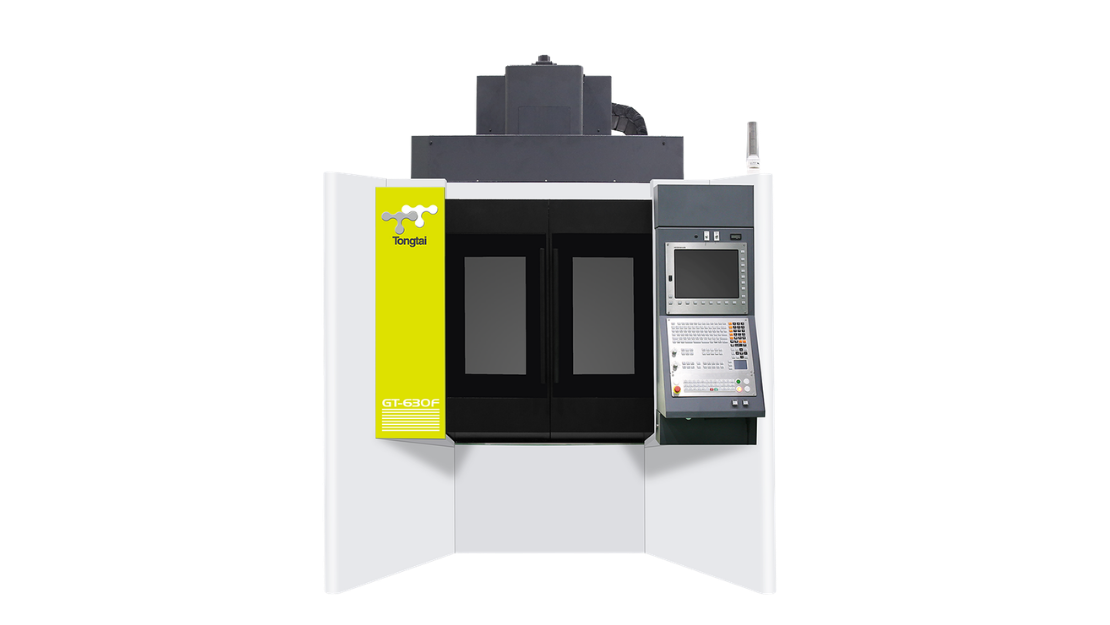

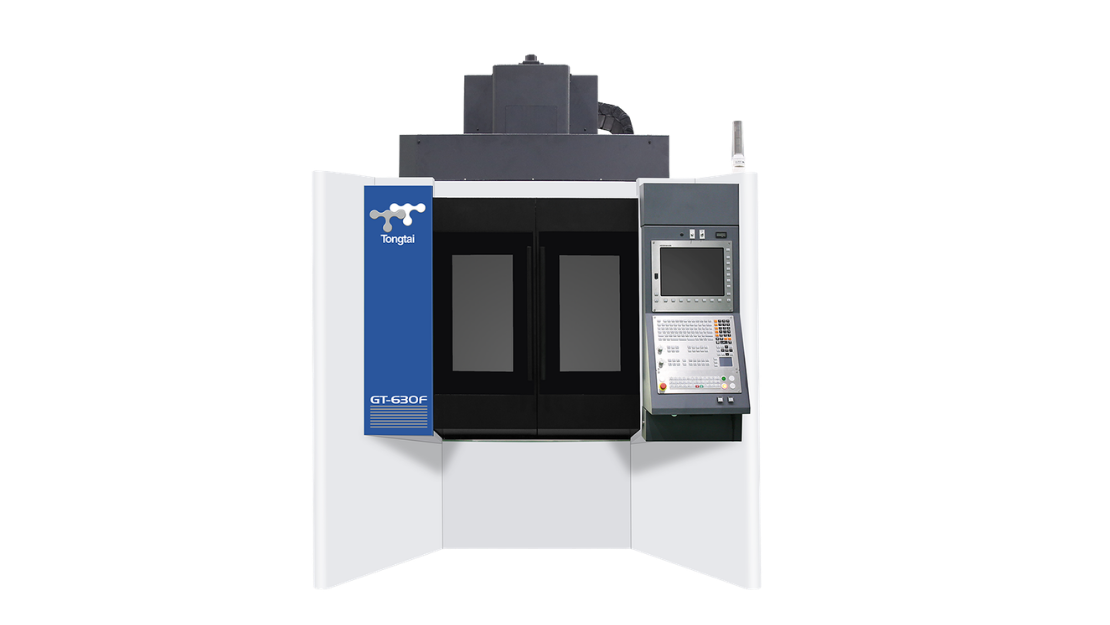

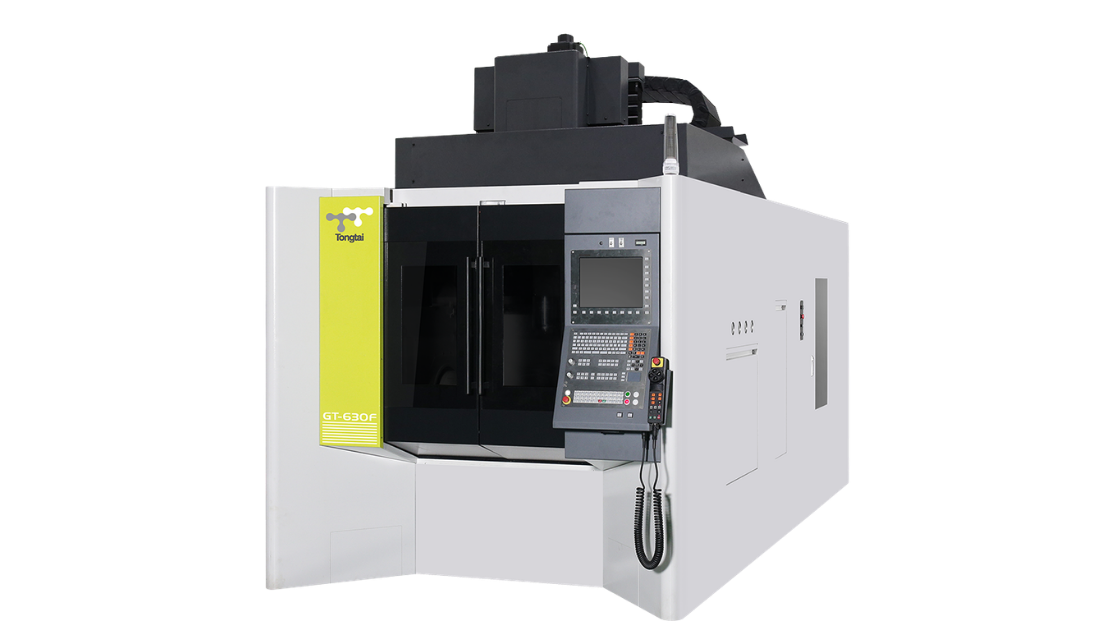

The Tongtai GT-630F is a high-performance 5-axis gantry machining center engineered for precision machining of medium- to large-sized complex components. Its high-rigidity gantry structure ensures that the three linear axes remain unaffected by workpiece weight, delivering exceptional stability, high-speed operation, and consistent machining accuracy even under heavy cutting conditions.
The machine is equipped with a roller cam-driven A/C-axis rotary table, providing high torque transmission and zero-backlash positioning for superior contouring accuracy. This advanced configuration enables simultaneous 5-axis machining of intricate freeform surfaces, making the GT-630F an ideal solution for manufacturing components such as impellers, turbine blades, aerospace parts, precision molds, and other complex workpieces.
With 760 mm X-axis travel, 820 mm Y-axis travel, and 560 mm Z-axis travel, the GT-630F offers a spacious machining envelope while maintaining excellent dynamic performance. The standard 15,000 rpm built-in spindle, with optional 20,000 rpm or 24,000 rpm configurations, provides the versatility required for both high-speed finishing and heavy-duty cutting applications.
The GT-630F features a high-rigidity gantry-style structure, allowing three-axis motion to remain unaffected by workpiece weight while maintaining high-speed, high-dynamic machining performance. Equipped with a roller cam-driven A/C-axis rotary table, the machine delivers high torque and zero-backlash positioning. It is ideal for simultaneous five-axis machining of medium- to large-sized complex surface components, such as impellers and blades, achieving an excellent balance between precision and heavy-duty cutting capability

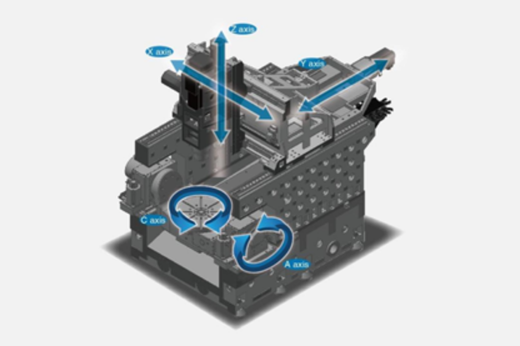

The X- and Z-axes adopt a short force flow design, achieving a lightweight structure while significantly enhancing cutting rigidity.

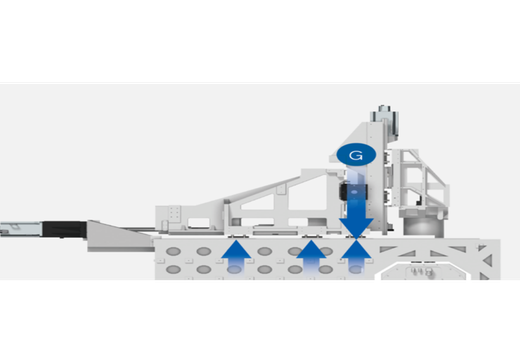

The center of gravity of the Y-axis moving components is precisely positioned within the support range of the guide blocks, effectively eliminating forward tilting caused by spindle weight imbalance. This ensures excellent dynamic stability even during high-speed cutting and rapid motion changes.

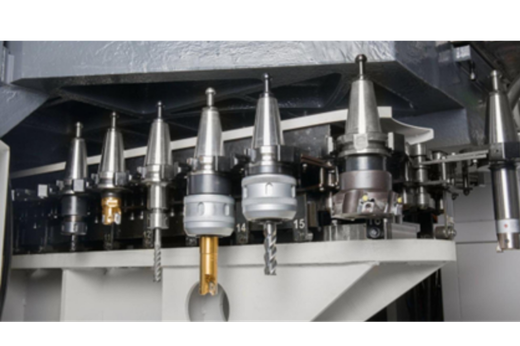

The tool magazine offers flexible configurations ranging from 32 to 80 tools to meet the demands of complex machining operations.
Combined with a cam-driven high-speed automatic tool changer, it provides reliable and efficient support for high-productivity production lines.

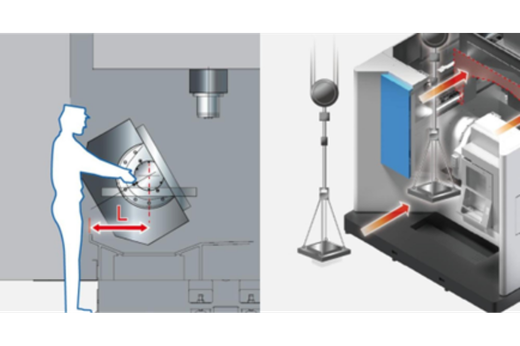

The machine is designed for excellent operator accessibility, featuring a wide door opening and retractable protective covers.
This not only simplifies routine maintenance but also significantly improves the efficiency of lifting, loading, and unloading large workpieces.
| SPECIFICATION | |
| ITEM | VALUE |
| X-Axis Travel | 760 mm |
| Y-Axis Travel | 820 mm |
| Z-Axis Travel | 560 mm |
| A-Axis Travel | +30 ~ -120° |
| C-Axis Travel | ±360° |
| X-Axis Rapid Traverse | 48 m/min |
| Y-Axis Rapid Traverse | 48 m/min |
| Z-Axis Rapid Traverse | 48 m/min |
| A-Axis Rapid Traverse | 25 rpm |
| C-Axis Rapid Traverse | 25 rpm |
| Spindle Taper | 7/24 Taper No.40 (1/10 Taper) |
| Spindle Speed | 15,000 (opt. 20,000/24,000) rpm |
| Spindle Motor | 40/40 [opt. (40/30)/(42/35)] kW |
| Table Size | Ø630 mm |
| Max. Table Load | 600 kg |
| Tool Capacity | 32 (opt. 40/64/80) pcs |
| Max. Tool Weight | 8 kg |
| Machine Width | 2,300 mm |
| Machine Depth | 5,037 mm |
| Machine Height | 3,760 mm |
| Machine Weight | 16,000 kg |
