Feature

The Tongtai TMV-1050QII is a Vertical Machining Center engineered for high-speed, high-precision machining with outstanding stability and productivity. Its optimized C-frame structure and extra-wide machine base provide exceptional rigidity, ensuring accurate performance during both high-speed and heavy-duty cutting operations.

With 1,050 × 600 × 530 mm axis travel, 48 m/min rapid traverse, and a high-speed automatic tool changer, the TMV-1050QII maximizes machining efficiency while maintaining superior quality. Optional thermal displacement compensation further enhances precision, making it an ideal solution for demanding precision manufacturing applications.

Product Introduction

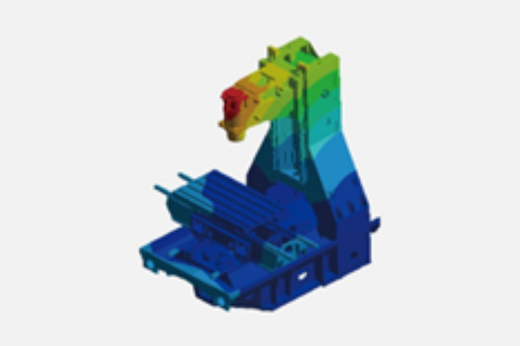

Optimized High-Rigidity Structure

The machine structure is optimized through finite element analysis (FEA) to enhance both rigidity and reliability, enabling high-performance machining with heavy-duty cutting capability, high precision, and increased productivity.

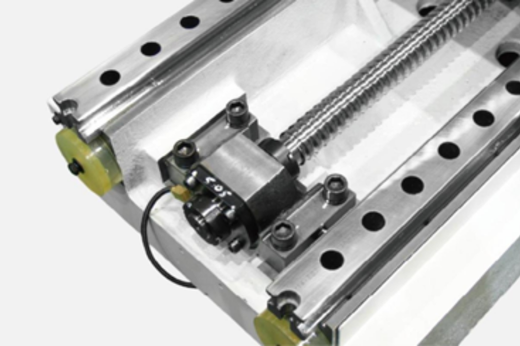

Pre-Tensioned Ballscrew

All three-axis ballscrews are preloaded to reduce thermal deformation caused by temperature rise, minimizing the effects of thermal expansion and ensuring stable machining accuracy and consistent machine performance.

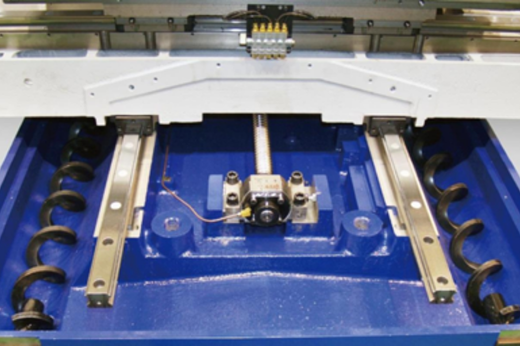

High-Efficiency Chip Removal

The machine base features a coolant flushing system integrated with a dual chip evacuation design, effectively reducing chip accumulation. An optional dual auger chip screw system is available to further improve chip removal efficiency and reduce manual cleaning efforts

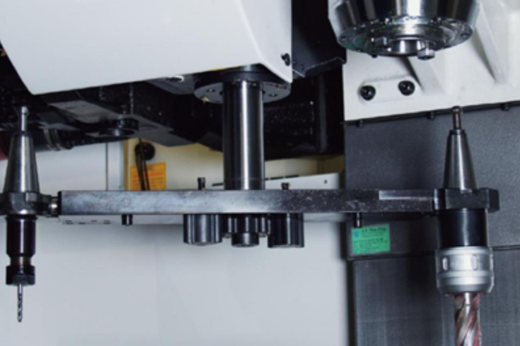

High-Speed Automatic Tool Changer (ATC)

The machine is available with either a 24- or 30-tool magazine and features a high-speed automatic tool changer, reducing idle time to meet high-efficiency machining demands.
