VC 610

Feature

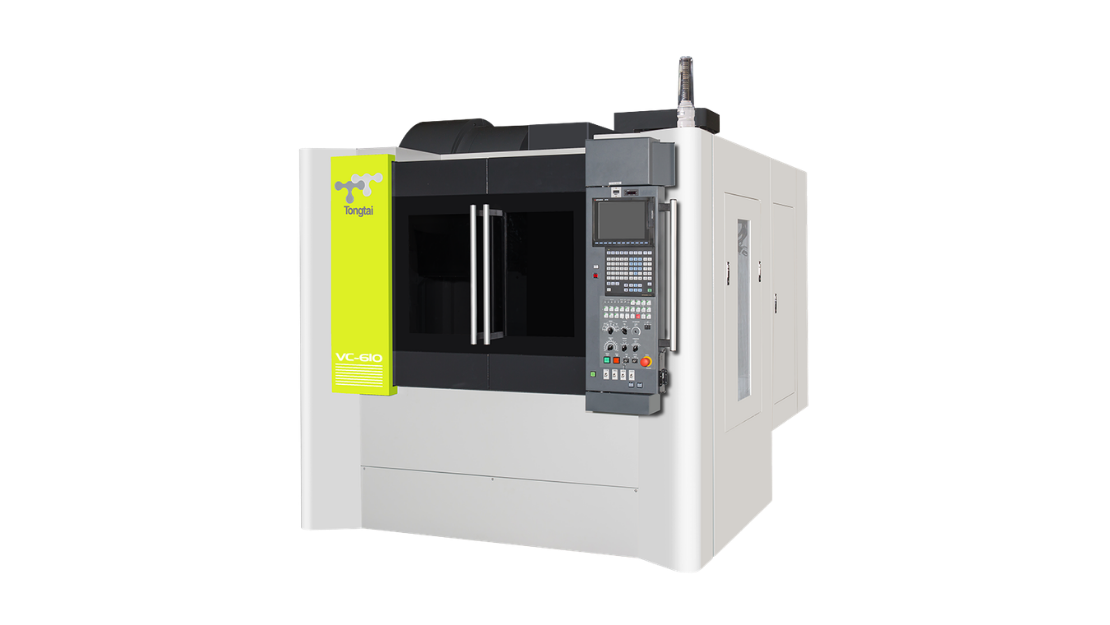

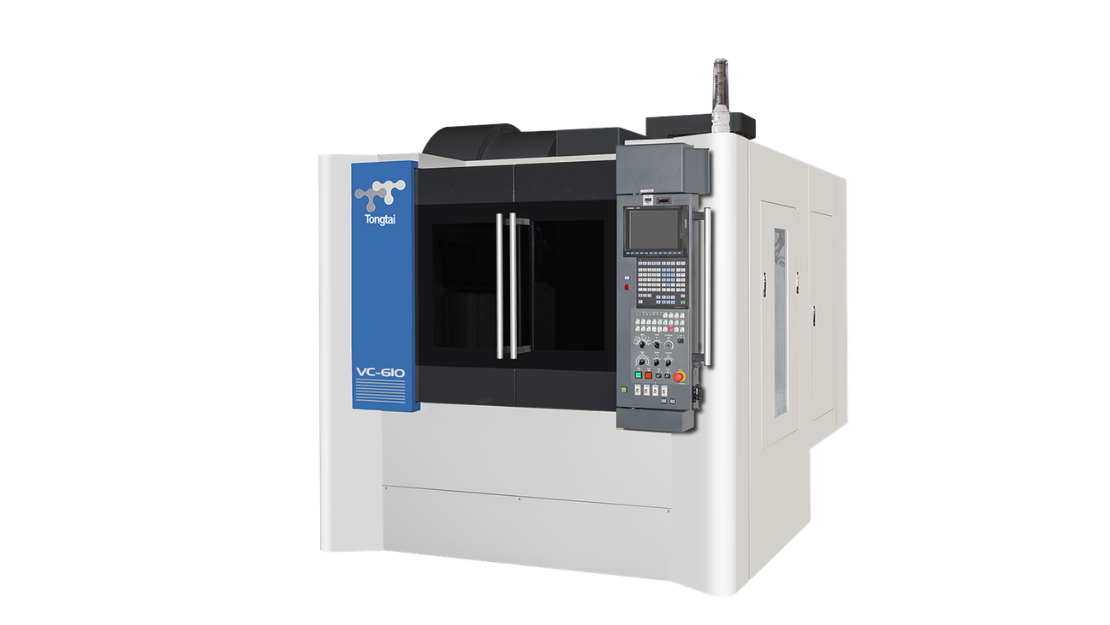

The Tongtai VC-610 is a Vertical Machining Center engineered for high-precision mold & die manufacturing and precision component machining. Its high-dynamic rigidity structure and oil-air lubricated spindle reduce heat generation while extending spindle life, ensuring reliable accuracy during continuous operation.

With 1,050 × 610 × 530 mm axis travel, high-speed machining control, and a BBT dual-contact tool holder system, the VC-610 delivers exceptional machining stability, superior surface finishes, and high productivity, making it an ideal solution for demanding precision manufacturing applications.

Product Introduction

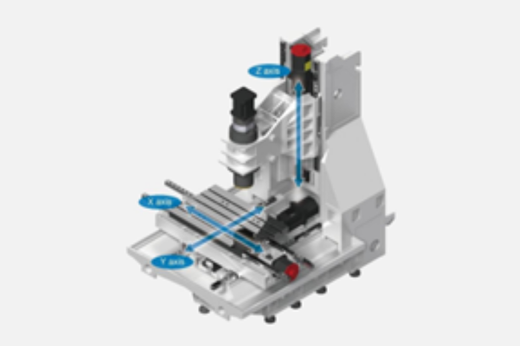

High-Rigidity Structure & Transmission

The machine column features a wide-span design with an optimized force flow path. Through finite element analysis (FEA), including static, modal, and structural optimization, it ensures high dynamic rigidity and stable machining performance. Combined with a 10 mm lead high-precision ballscrew and high-rigidity □45 mm roller linear guideways on all three axes, the machine delivers enhanced transmission accuracy and superior load-bearing capability.

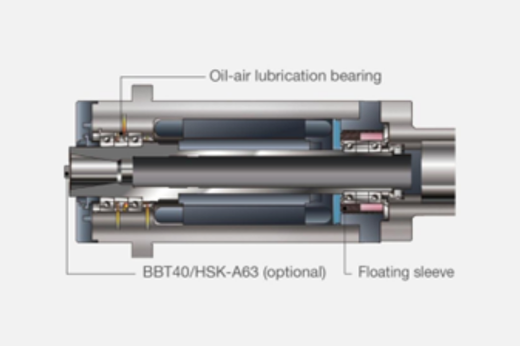

High-Precision Thermally Stable Spindle

The spindle adopts oil-air lubrication and an oil-cooled sleeve design, effectively dissipating heat generated during high-speed operation and minimizing the impact of thermal expansion. The 20,000 rpm built-in spindle, combined with a floating bearing structure, maintains stable preload and extends service life. Standard BBT dual-contact tool holders further enhance clamping rigidity and machining quality.

High-Speed & High-Precision Control

Equipped with an advanced CNC controller, the machine supports high-speed, high-precision machining applications. The machine also features Super Smooth Surface (SSS) control, which compensates for large-range contour path errors and enhances surface finish quality, making it especially suitable for high-precision mold machining
