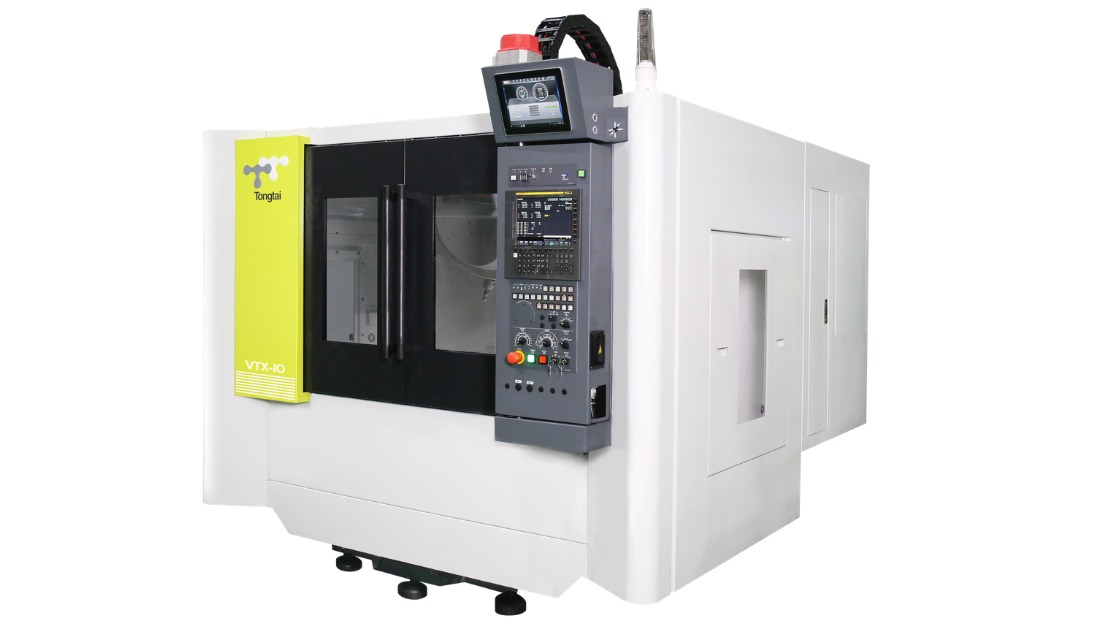

The VTX-10 Tapping Center combines high-torque machining performance with high-speed responsiveness, offering the cutting capability of a mid-size machining center in a compact and efficient design.
Key Features:
FEA-optimized column and spindle head structures improve rigidity and deformation resistance. Combined with DB-arranged roller linear guideways, the machine delivers greater stability, load capacity, and machining accuracy.
The long-nose spindle minimizes interference when machining box-type workpieces. With a high-torque spindle motor, the machine delivers up to 84 Nm of torque and rapid traverse speeds of 50/50/56 m/min for both heavy cutting and high-speed machining.
The system automatically detects improper tool positioning or incomplete clamping and immediately alerts the operator, helping prevent tool damage and maintain safe, reliable machining.
The servo-driven tool magazine provides fast, stable, and quiet tool changes. With 1.2-second tool-to-tool change time, 1.1-second indexing, and 21-tool capacity, it helps reduce cycle times and improve overall productivity.
| Item | Value |
| X-Axis Travel | 1,000 mm |
| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 300 mm |
| X-Axis Rapid Traverse | 50 m/min |
| Y-Axis Rapid Traverse | 50 m/min |
| Z-Axis Rapid Traverse | 56 m/min |
| Spindle Taper | 7/24 Taper No. 30 |
| Spindle Speed | 12,000 rpm |
| Spindle Motor | High Torque?13/3.7 (opt. 7.5/5.5) kW?High Efficiency?26/9 (opt. 34/9) kW |
| Table Length | 1,100 mm |
| Table Width | 510 mm |
| Max. Table Load | 500 kg |
| Tool Capacity | 21 pcs |
| Max. Tool Weight | 3 kg |
| Machine Width | 2,280 mm |
| Machine Depth | 2,770 mm |
| Machine Height | 2.850 mm |
| Machine Weight | 4,200 kg |
