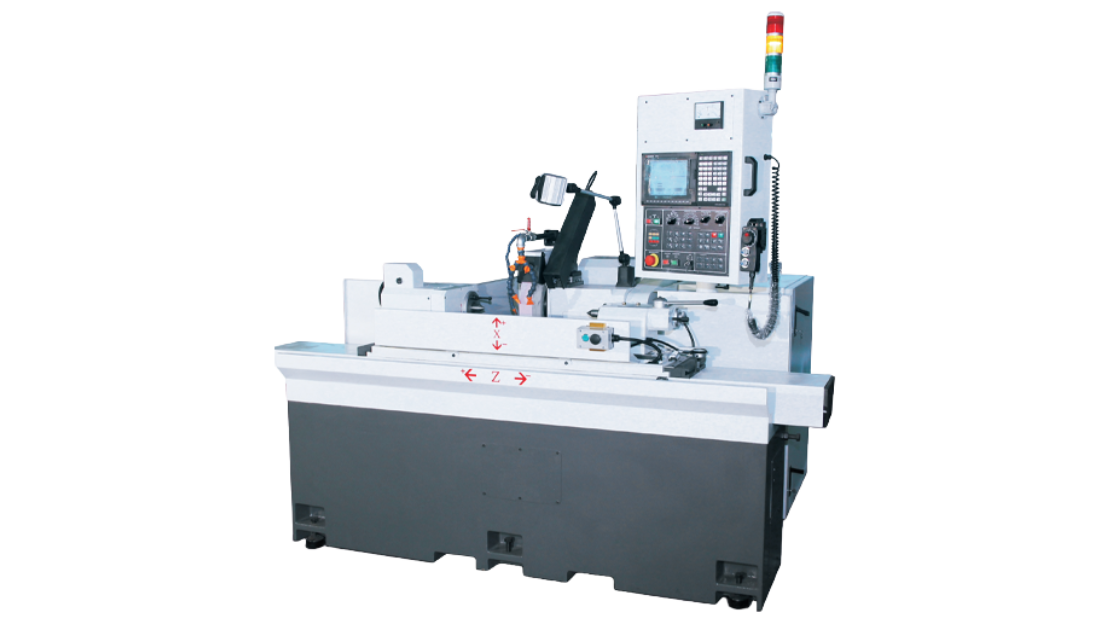

Stable and rigid spindle head
The spindle runs on precision bearings, assuring maximum spindle stability. It guarantees outstanding grinding accuracy for external dia., internal dia. (optional) & end face.
Precision wheel head
The grinding wheel spindle is precision machined from high quality alloy steel, normalized, tempered, carburized and sub-zero treated, precision ground and mirror-effect treated.
MODEL |
|
| Model | GU32x60NC |
CAPACITY |
|
| Swivel over table | Ø320 MM |
| Distance between centers | 600 MM |
| Max. external grinding diameter | Ø300 MM |
| Max. load of centers | 150 KG |
GRINDING WHEEL |
|
| O.D. x width x I.D. | Ø405 x 50 x Ø127 mm |
| Linear velocity | 33 M/s |
GRINDING WHEEL X AXIS |
|
| Manual distance | 160 mm |
| Auto. rapid advance | 40 m/min |
| Max. stroke | 250 mm |
| Min. setting unit | 0.001 mm |
| One turn of handwheel | 2 (0.005) mm |
TABLE Z AXIS |
|
| Traverse speed | 1.5 m/min |
| Max stroke | 650 mm |
| Auto reciprocate min. stroke | 8 mm |
| Feed of one turn of handwheel 2 step | 20 mm (2 mm) |
| Swivel angle | (-2°, +10°) |
WORK SPINDLE HEAD |
|
| Swivel angle | (-30° ~ +90°) |
| Center taper | M.T. No. 4 |
| Spindle speed (variable) | 10~300 r.p.m. |
| Max. load of spindle (tool holder included) | 35 kgs (max. length: 150 mm) |
TAILSTOCK |
|
| Center taper | M.T. No. 4 |
| Stroke | 25 mm |
| Fine adjustment range | (+/- 0.03 mm) |
MOTOR |
|
| Wheel spindle | 3.7 kW (4P) |
| Workhead spindle (AC Servo Motor) | 0.85 kW (4P) Frequency |
| Hydraulic pump | 0.37 kW (4P) |
| Wheel spindle lubrication pump | 0.18 kW (4P) |
| Coolant pump | 0.18 kW (2P) |
| Internal grinding spindle (opt.) | 0.75 kW (2P) |
POWER |
|
| Total voltage | 10KVA |
TANK |
|
| Wheel spindle lubricant tank | 9L |
| Hydraulic tank | 46L |
| Coolant tank | 110L |
MACHINE WEIGHT |
|
| Net weight | 2600 kgs |
